All Key Machine Cutter For Wenxing 100A 100B 100E 100F 100H 100G Q27 Q29 288 218 233 Key Duplicator Machine



Suit for the following keys

70x1.3x22mm

Compatible with Wenxing 100B 202,100A,100A1，100A2，100A3 Key Cutting Machine

0022A

Made of HSS-Co(HSSM35) material imported from Japan

HJ-0022A

Black Nano coated ,imported nano-coating equipment for high hardness coating

Good friction properties can reduce cutting, coating hardness 3500HV

Very high thermal resistance, wear resistance increased by 50%

0022AC.C

Made of Solid carbide, the hardness reaches HRA92.5 or above, quite high hardness.The carbide cutter lifetime is three times than HSS cutter

70x1.3x25.4mm

Compatible with
100C,100D,100E,100E1,100F,100F1 wenxing key machine

80x1.4x22mm

Compatible with 100H,100G,100G1,100G2,100G3,202A,202C wenxing key machine

Cutter wheel for the following keys

60x6x16mm

Compatible with 218-D,218-A,218-B, 216, 268, 283，288, 288-A,288-B,218D，218E，288C,218F,288F，298A，298B，RB18L，depai（488E,298,288D），268-A,218-G, 218-F,JZ-2BS,2BA,2AS,JZ-238BS,DEFU 268B

60x7.3x12.7mm

Compatible with 233-A,233B,233C,100-B,283-A,283-B,217,100-A,100-A1,100-A2,100-A3，JZ-300,283-D,232

70x7.3x12.7mm

Compatible with 201A,201B,201C,201D,100D,100E,100E1,100F,100G,101,219,219A,Q27, Q11， Q27A，100F1,201D, JA-301

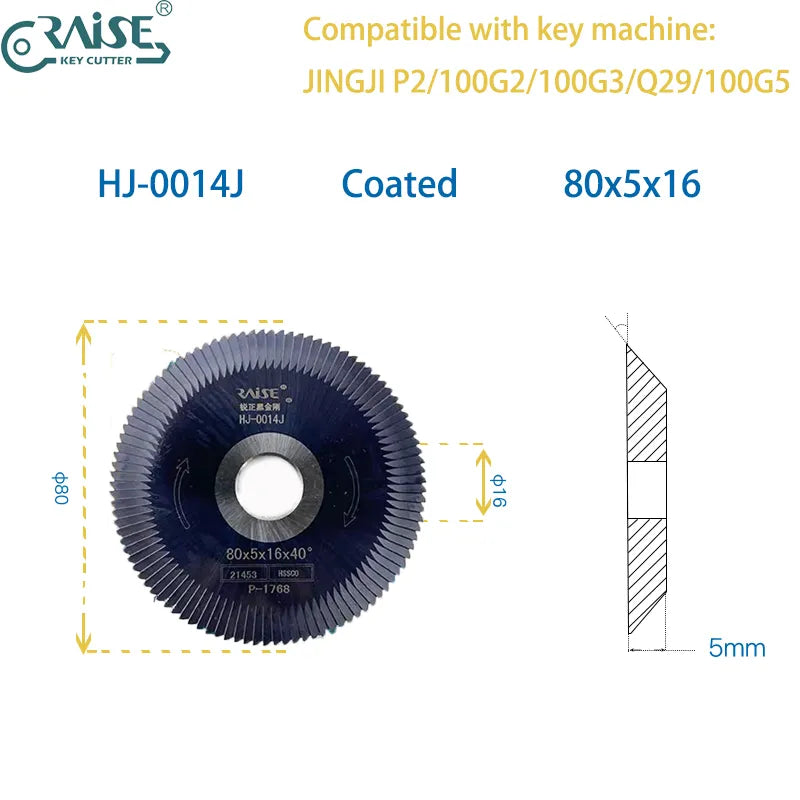

80x5x16mm

Compatible with JINGJI P2，wenxing 100G2,100G3,Q29.100G5 key machine
